Overview #

See 3D overview of 53.9

Assembled view #

Exploded view #

Parts #

See order of use for 53.9 - level 1 perimeter corner bracing connector

Assembly steps #

These are assembly instructions for adding fasteners to a connector adaptation. Before adding fasteners the following are prerequisites:

1. the slab is level
2. baseplate connector is staged per layout
3. sandwich panels are staged

Step 1 #

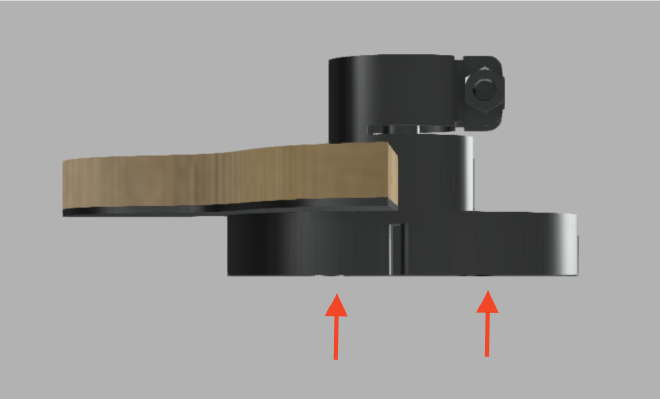

Position 2 pcs. of 4.11 shim for baseplate connector in such a way that they ensure uniform levelness across all connectors on the first level.

Step 2 #

Drill holes at the designated points, then proceed to securely install 4 pcs. 99.15 anchor 3/8-16 in these holes.

Step 3 #

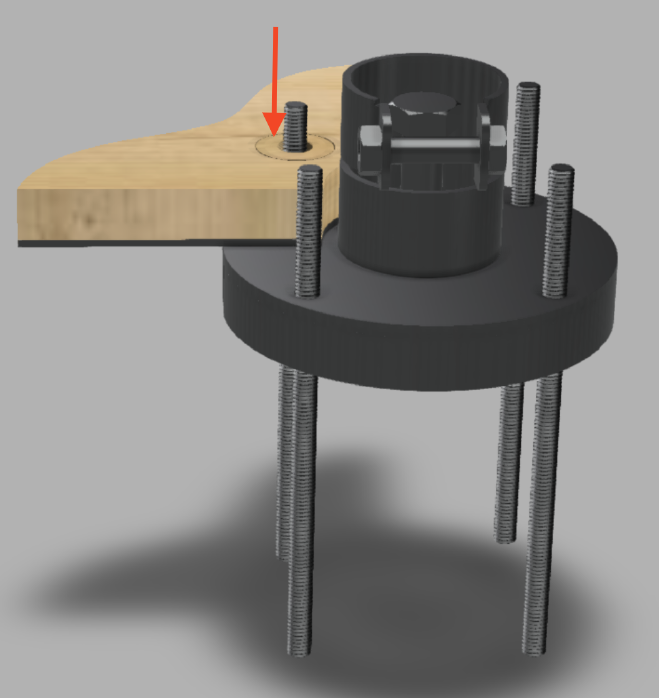

Insert 1 pcs. of 1.5 plywood washer into sandwich panel holes.

Step 4 #

Position 3.5 spacer as depicted on the picture above.

Step 5 #

Position 2 pcs. of 10.15 floor plate with countersunk holes just as depicted in the picture above.

Step 6 #

Fasten floor plates with 8 pcs. of 99.73 countersunk screw countersunk screw in designated holes for countersunk screws.

Step 7 #

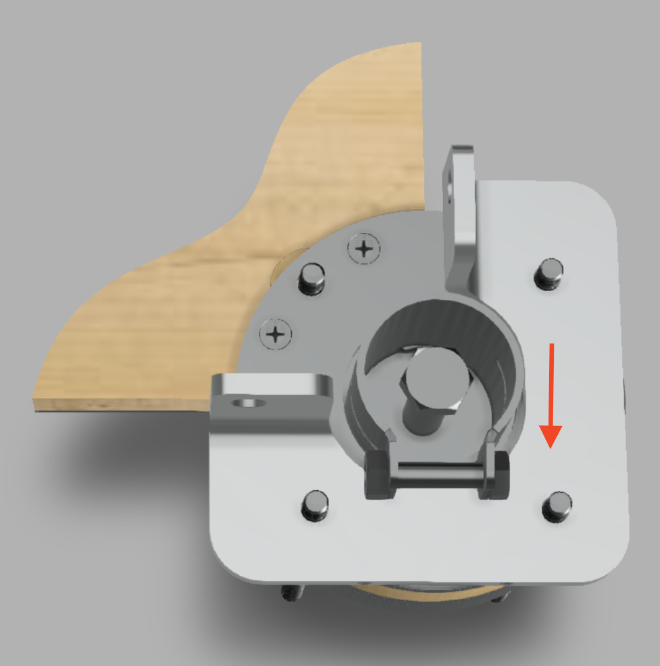

Position 15.41 corner bracing bracket as depicted on the image.

Step 8 #

Add 4 pcs. of 99.91001 washer onto the screws and fasten with 4 pcs. of 99.13 hex nut.
