53.12 - upper level perimeter corner bracing connector


Overview #

See 3D overview of 53.12

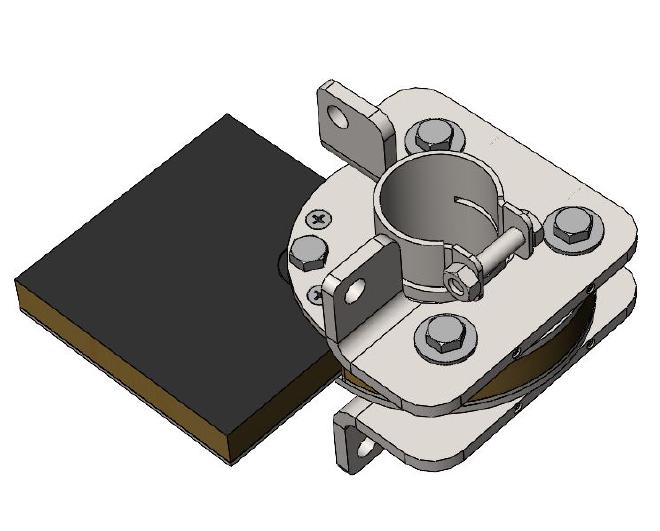

Assembled view #

Assembled 53.12

Exploded view #

Exploded-view of 53.12

Parts #

See order of use for 53.12 - upper level perimeter corner bracing connector

Assembly steps #

Prerequisites #

  1. fL2 or higher is installed
  2. central connector is installed
  3. sandwich panels are installed

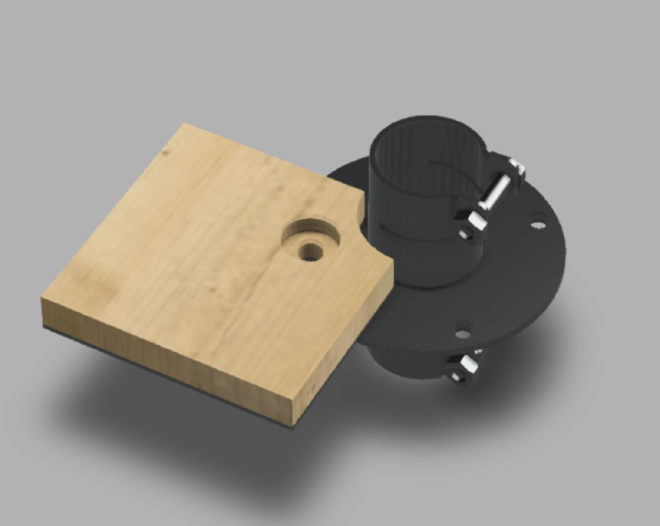

Initial position state of 53.12

Step 1 #

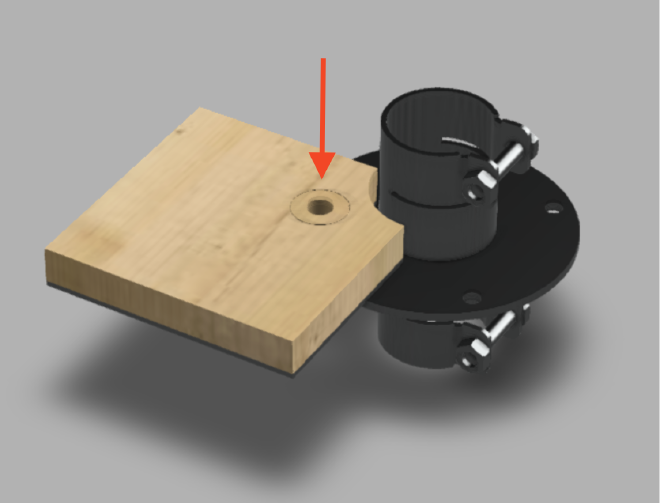

Insert 1 pcs. of 1.5 plywood washer into sandwich panel hole.

Step 2 #


Position 3.5 spacer as depicted on the picture above.

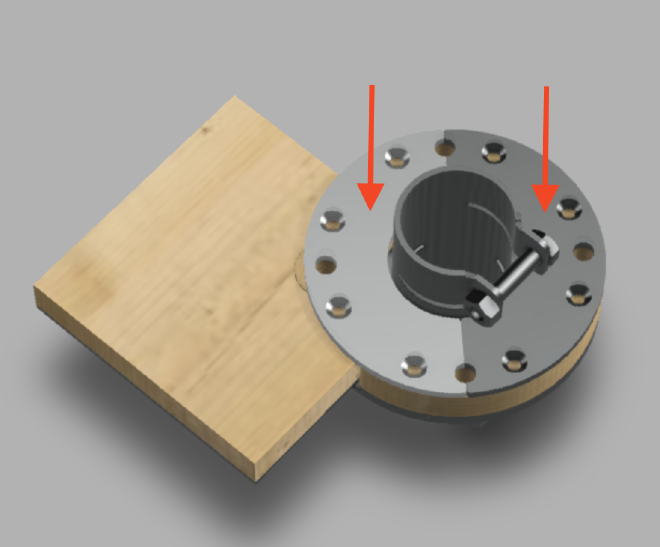

Step 3 #


Position 2 pcs. of 10.15 floor plate with countersunk holes as depicted in the picture above.

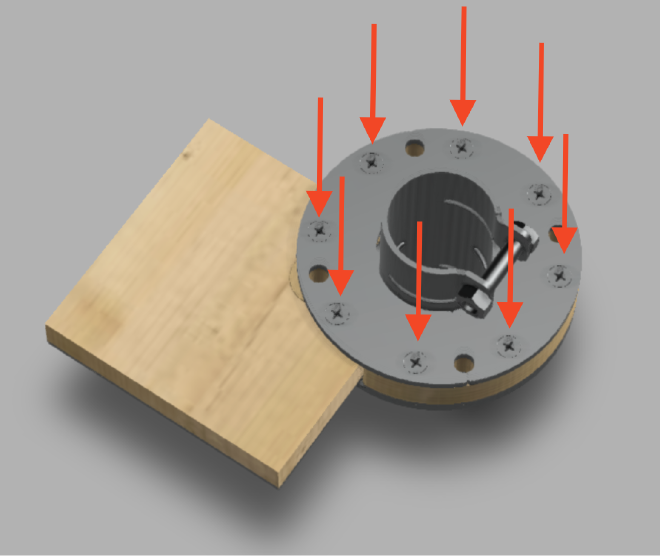

Step 4 #


Fasten floor plates with 8 pcs. of 99.73 countersunk screw in designated holes for countersunk screws.

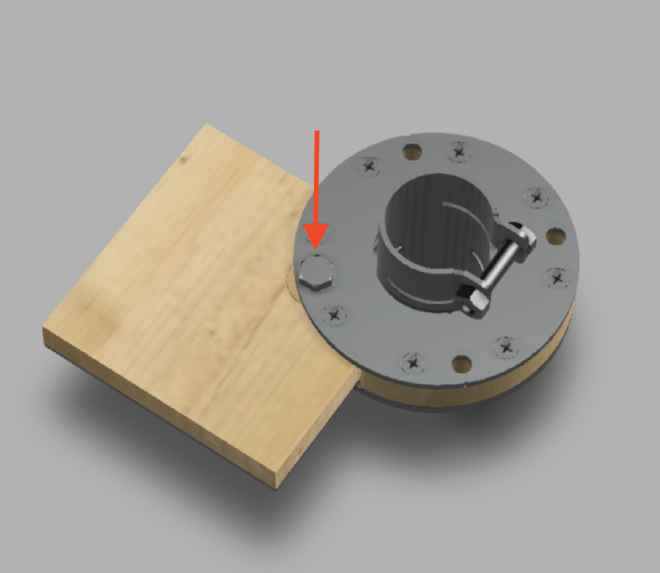

Step 5 #


Fasten floor plate with 1 pcs. of 99.91035 screw.

Note: do not tighten the screws before Step 8

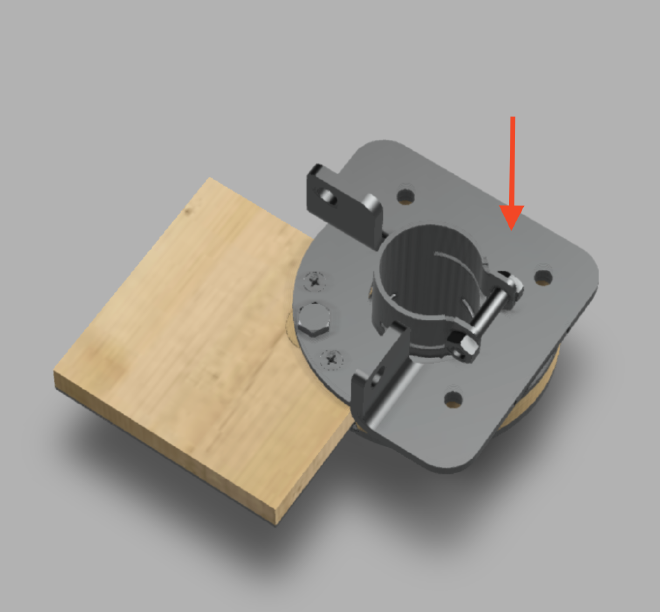

Step 6 #


Position 15.41 corner bracing bracket as depicted on the image.

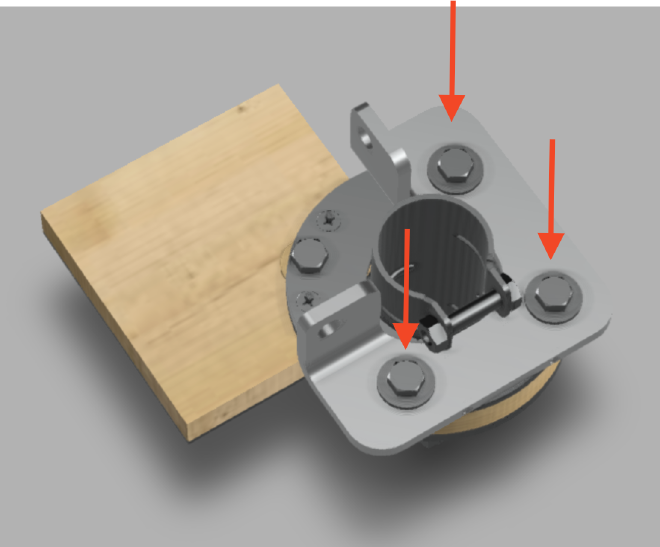

Step 7 #


Position 3 pcs. of 99.91001 washer onto the holes on the bracing bracket. Screw in 3 pcs. of 99.29 screw.

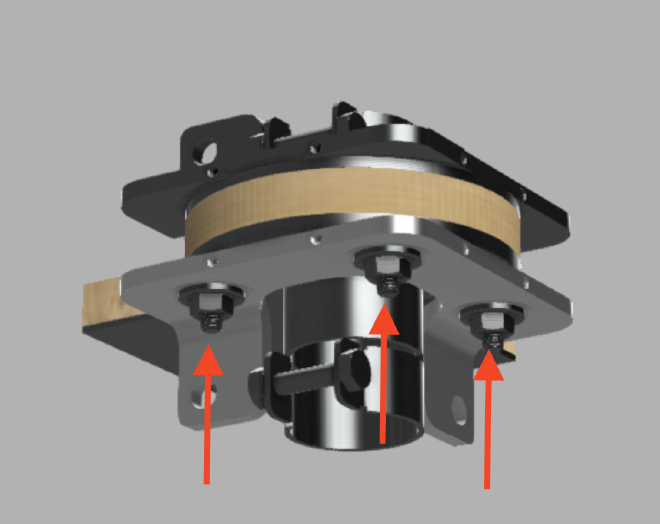

Step 8 #


Position 15.41 corner bracing bracket through the screws, add 2 pcs. of 99.91001 washer onto the screws and fasten with 3 pcs. of 99.91008 hex nut.
