Overview #

See 3D overview of 53.28

Assembled view #

Exploded view #

Parts #

See order of use for 53.28 - top level internal cross bracing connector

Assembly steps #

Prerequisites #

1. fL2 or higher is installed
2. central connector is installed
3. sandwich panels are installed

Step 1 #

Insert 3 pcs. of 1.5 plywood washer into sandwich panel holes.

Step 2 #

Put 99.91001 washer in hole of the sandwich panel and screw in with 99.91035 screw.

Step 3 #

Position 2 pcs. of 10.15 floor plate with countersunk holes as depicted in the picture above.

Step 4 #

Fasten floor plates with 8 pcs. of 99.73 countersunk screw in designated holes for countersunk screws.

Step 5 #

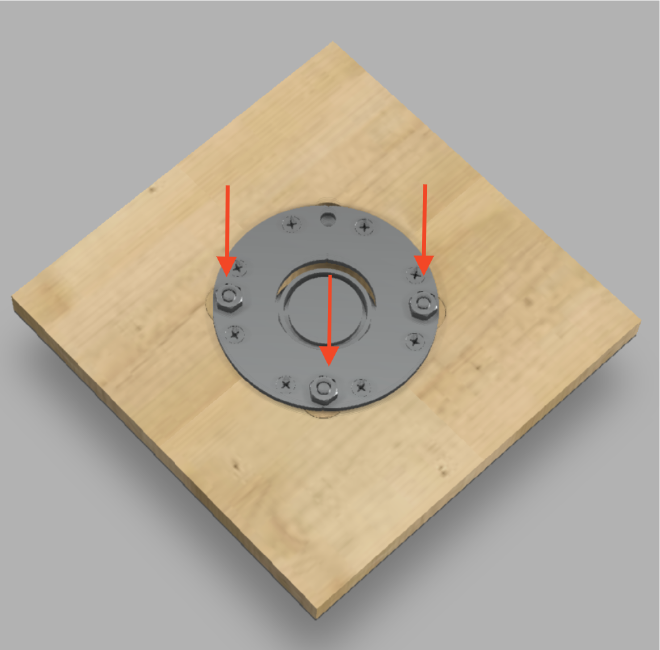

Position 15.56 cross bracing bracket as depicted on the image above and fix with 3 pcs. of 99.21004 screw from underneath.

Step 6 #

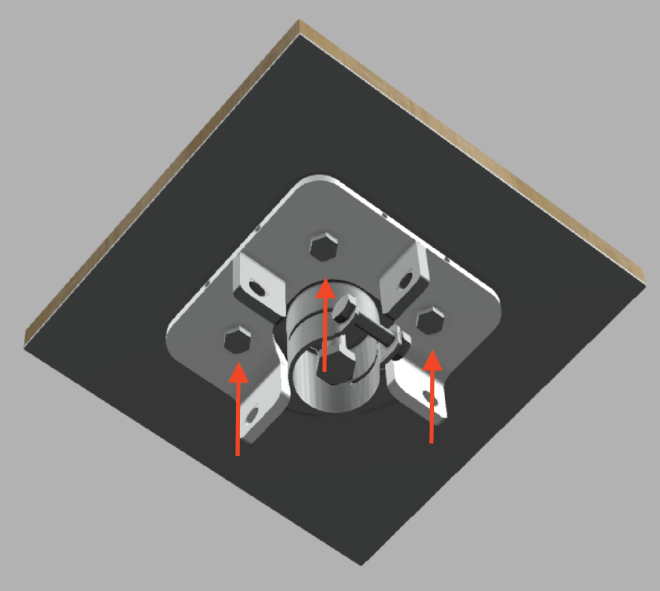

Tighten with 3 pcs. of 99.91008 hex nut.
