53.26 - upper level internal straight connector
Table of Contents
Overview #
Assembled view #
Exploded view #
Parts #
See order of use for 53.26 - upper level internal straight connector
Assembly steps #

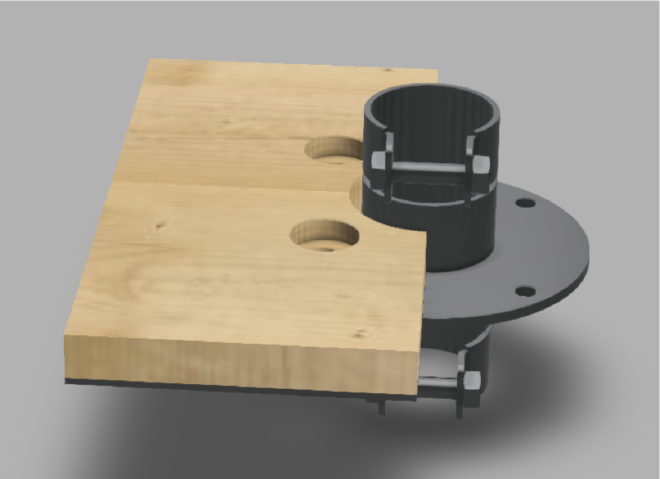

Prerequisites #
- fL2 or higher is installed
- central connector is installed
- sandwich panels are installed
Step 1 #

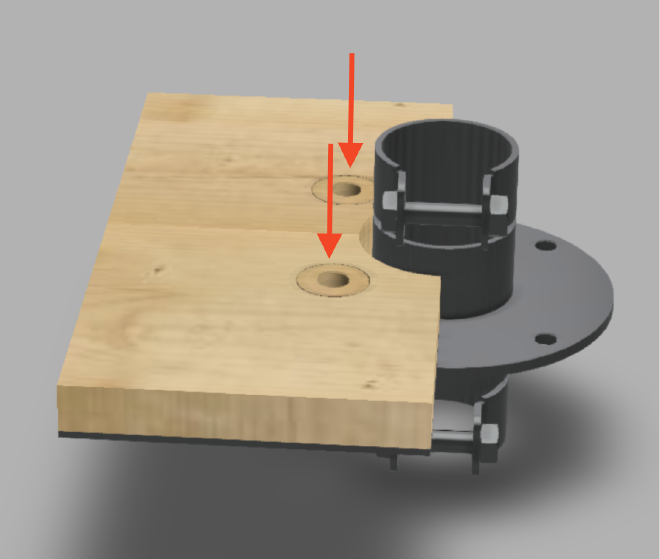

Insert 2 pcs. of 1.5 plywood washer into sandwich panel holes.
Step 2 #
Position 3.4 spacer as depicted on the picture above.
Step 3 #

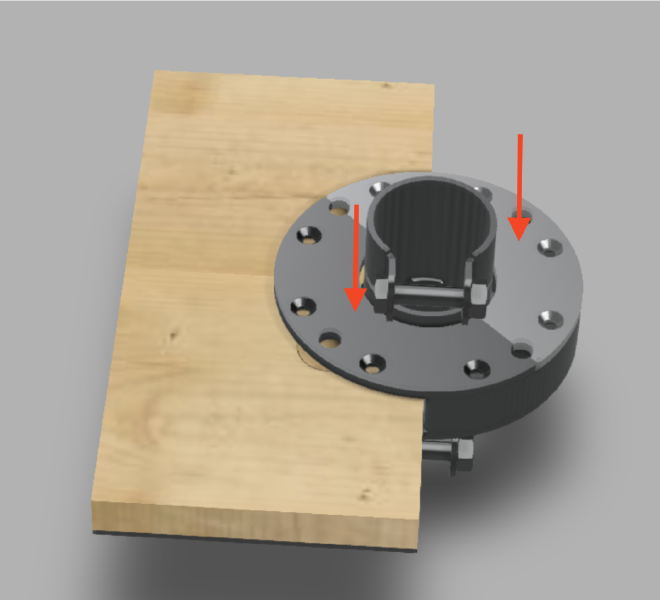

Position 2 pcs. of 10.15 floor plate with countersunk holes as depicted in the picture above.
Step 4 #

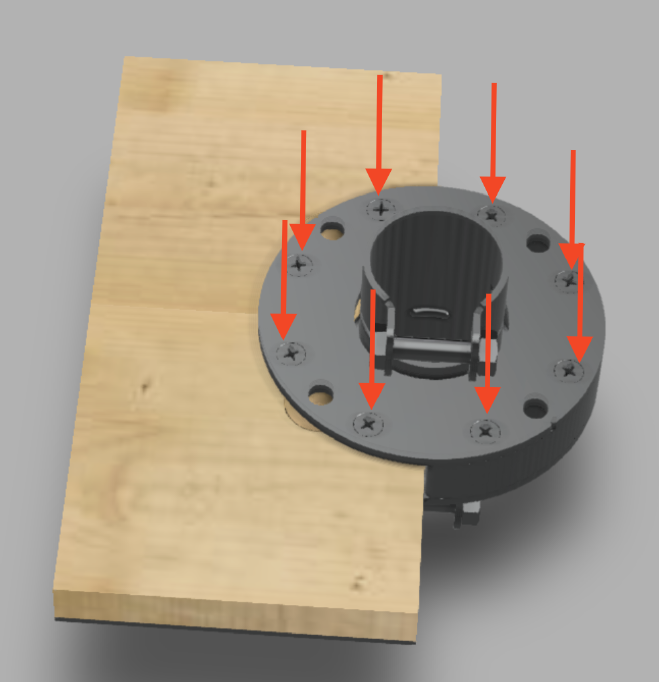

Fasten floor plates with 8 pcs. of 99.73 countersunk screw in designated holes for countersunk screws.
Step 5 #
Fasten floor plates with 2 pcs. of 99.91035 screw.
Note: do not tighten the screws before Step 9.
Step 6 #
Position 15.40 bracing bracket as depicted on the image.
Step 7 #

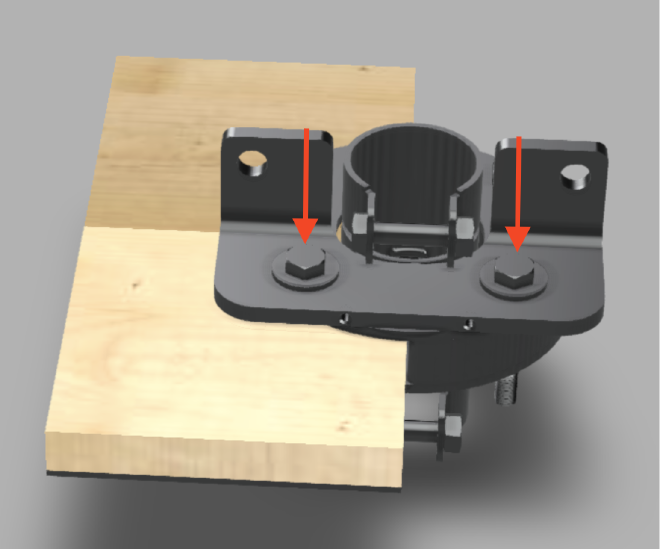

Position 2 pcs. of 99.91001 washer onto the holes on the bracing bracket and screw in 2 pcs. of 99.29 screw.
Step 8 #
Position 15.40 bracing bracket on the bottom of the connector as depicted on the image.
Step 9 #

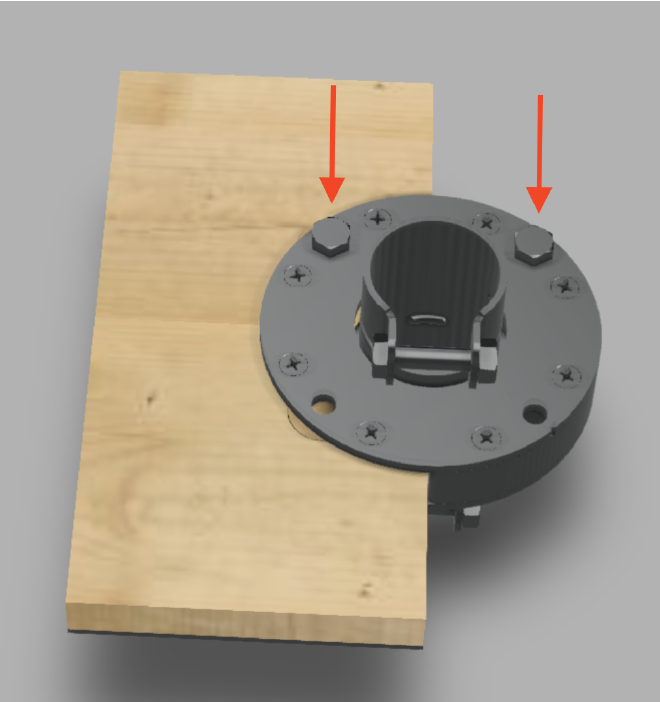

Add 2 pcs. of 99.91001 washer onto the screws and fasten with 2 pcs. of 99.91008 hex nut.
