Overview #

See 3D overview of 53.25

Parts #

See order of use for 53.25 - top level perimeter straight connector

Assembly steps #

Prerequisites #

1. last level is installed
2. central connector is installed
3. sandwich panels are installed

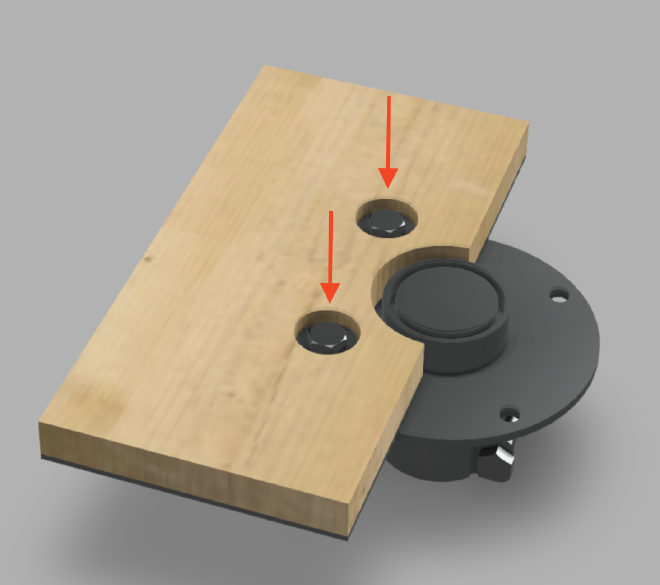

Step 1 #

Place 2 pcs. 99.91001 washer and fix with 99.91035 screw.

Step 2 #

Position 1 pcs. of 10.15 floor plate with countersunk holes just as depicted in the picture above.

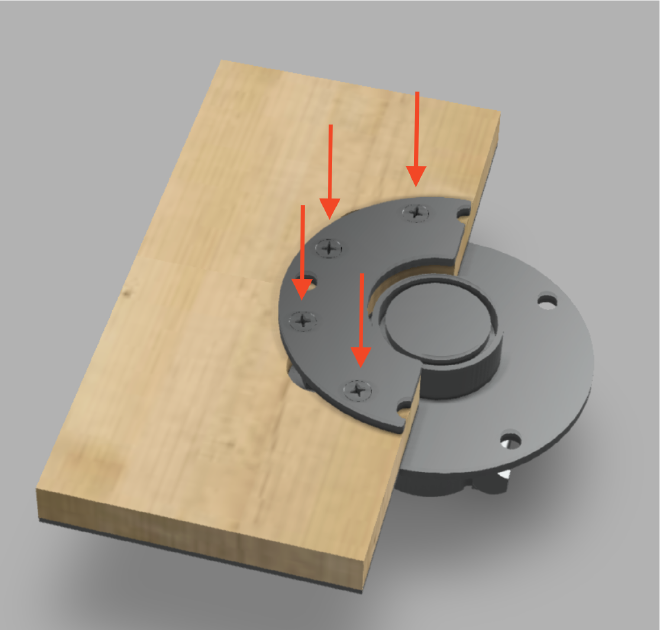

Step 3 #

Fasten floor plate with 4 pcs. of 99.73 countersunk screw in designated holes for countersunk screws.

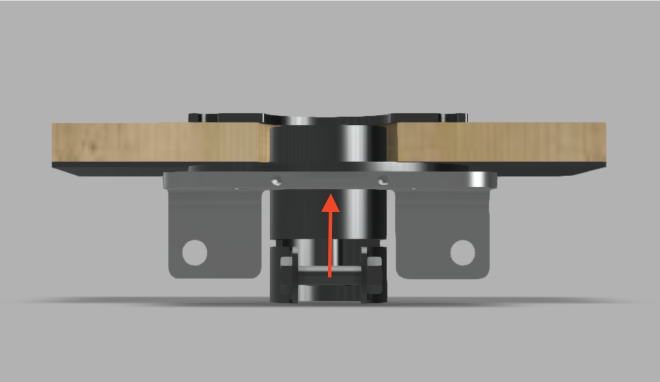

Step 4 #

Position 15.40 bracing bracket underneath as depicted on the image above.

Step 5 #

Add 2 pcs. of 99.91001 washer onto the screws and fasten with 2 pcs. of 99.91008 hex nut.
