53.24 - top level perimeter corner bracing connector

Table of Contents

Overview #

See 3D overview of 53.24

Assembled view #

Assembled 53.24

Exploded view #

Exploded-view of 53.24

Parts #

See order of use for 53.24 - top level perimeter corner bracing connector

Assembly steps #

Prerequisites #

  1. fL2 or higher is installed
  2. central connector is installed
  3. sandwich panels are installed
Initial position state of 53.24

Step 1 #


Place 1 pcs. 99.91001 washer and fix with 99.91035 screw.

Step 2 #


Position 15.41 corner bracing bracket.

Step 3 #

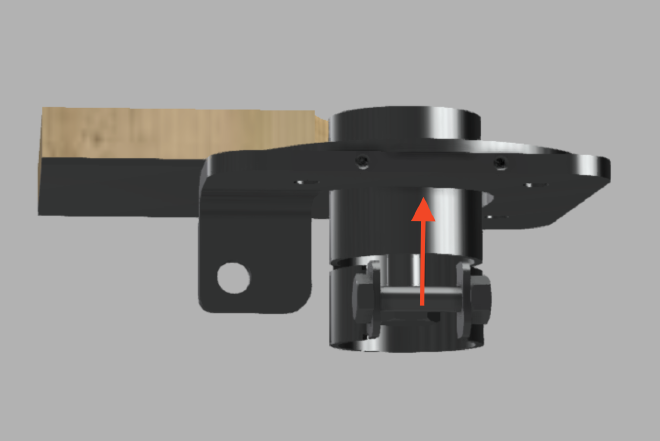

Fix 15.41 corner bracing bracket with 3 pcs. of 99.91025 bolt from underneath, add 3 pcs. of 99.91001 washer and tighten with 3 pcs. of 99.91008 hex nut.
