53.20 - multi-level internal standalone connector

Table of Contents

Overview #

See 3D overview of 53.20

Assembled view #

Assembled 53.20

Exploded view #

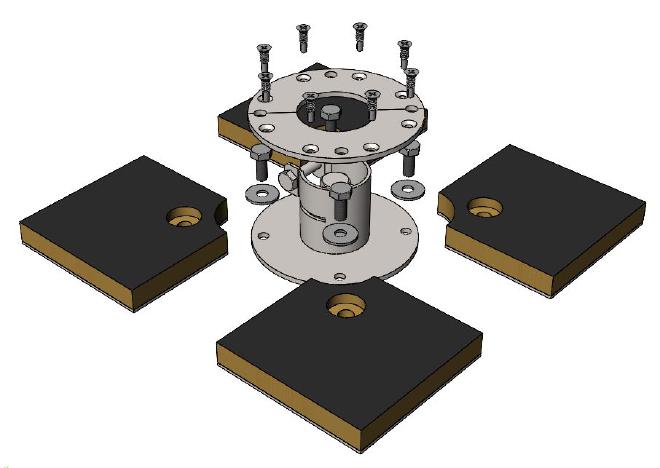

Exploded-view of 53.20

Parts #

See order of use for 53.20 - multi-level internal standalone connector

Assembly steps #

Prerequisites #

  1. fL2 or higher is installed
  2. central connector is installed
  3. sandwich panels are installed
Initial position state of 53.20

Step 1 #


Place 4 pcs. of 99.91001 washer and fix with 4 pcs. 99.91035 screw.

Step 2 #


Position 2 pcs. of 10.15 floor plate with countersunk holes as depicted in the picture above.

Step 3 #


Fasten floor plates with 8 pcs. of 99.73 countersunk screw in designated holes for countersunk screws.
