53.19 - level 1 internal straight bracing connector
Table of Contents
Overview #
Assembled view #
Exploded view #
Parts #
See order of use for 53.19 - level 1 internal straight bracing connector
Assembly steps #
These are assembly instructions for adding fasteners to a connector adaptation. Before adding fasteners the following are prerequisites:
- the slab is level
- baseplate connector is staged per layout
- sandwich panels are staged

Step 1 #
Position 2 pcs. of 4.11 shim for baseplate connector in such a way that they ensure uniform levelness across all connectors on the first level.
Step 2 #

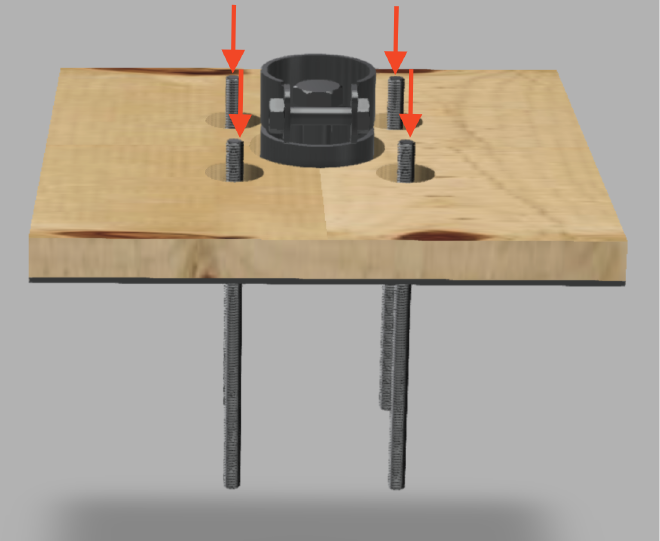

Drill holes at the designated points, then proceed to securely install 4 pcs. 99.15 anchor 3/8-16 in these holes.
Step 3 #

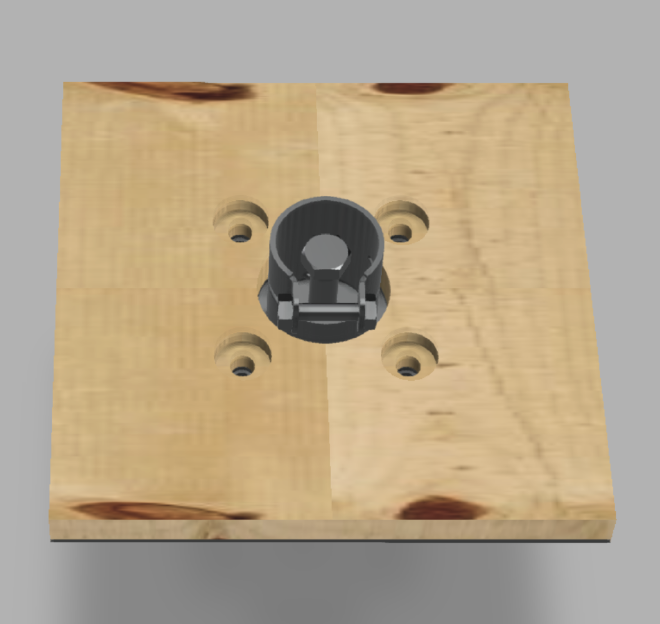

Insert 4 pcs. of 1.5 plywood washer into sandwich panel holes.
Step 4 #

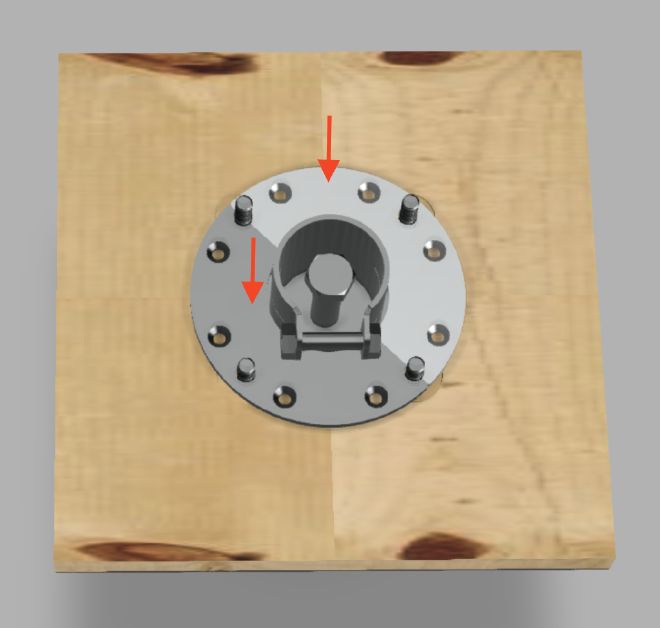

Position 2 pcs. of 10.15 floor plate with countersunk holes just as depicted in the picture above.
Step 5 #

Fasten floor plates with 8 pcs. of 99.73 countersunk screw in designated holes for countersunk screws.
Step 6 #

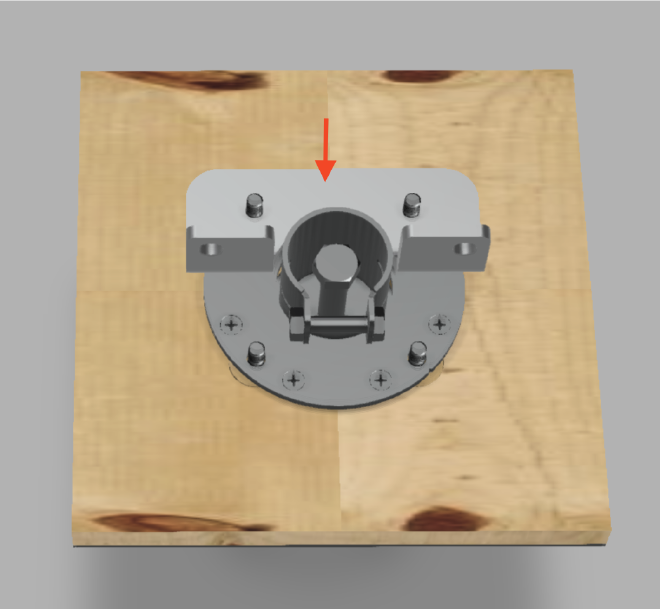

Position 15.40 bracing bracket as depicted on the image.
Step 7 #

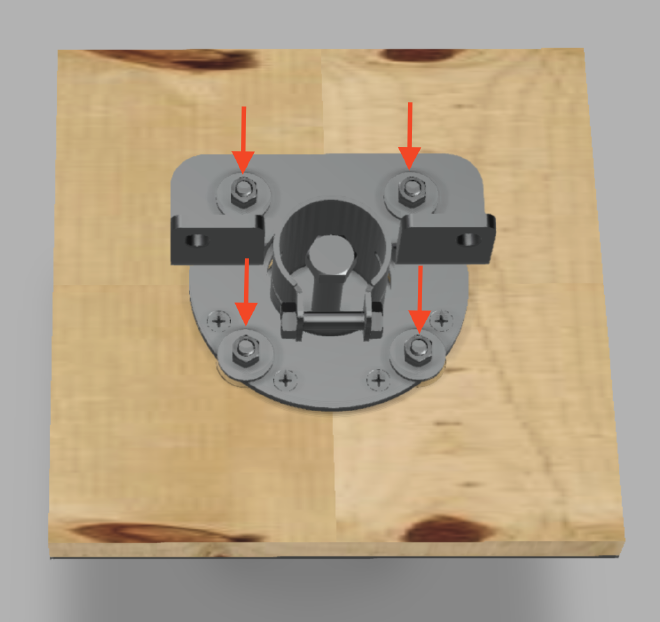

Add 4 pcs. of 99.91001 washer onto the screws and fasten with 4 pcs. of 99.13 hex nut.
