53.18 - multi-level perimeter standalone connector

Table of Contents

Overview #

See 3D overview of 53.18

Assembled view #

Assembled 53.18

Exploded view #

Exploded-view of 53.18

Parts #

See order of use for 53.18 - multi-level perimeter standalone connector

Assembly steps #

Prerequisites #

  1. level is installed
  2. central or baseplate connector is installed
  3. sandwich panels are installed

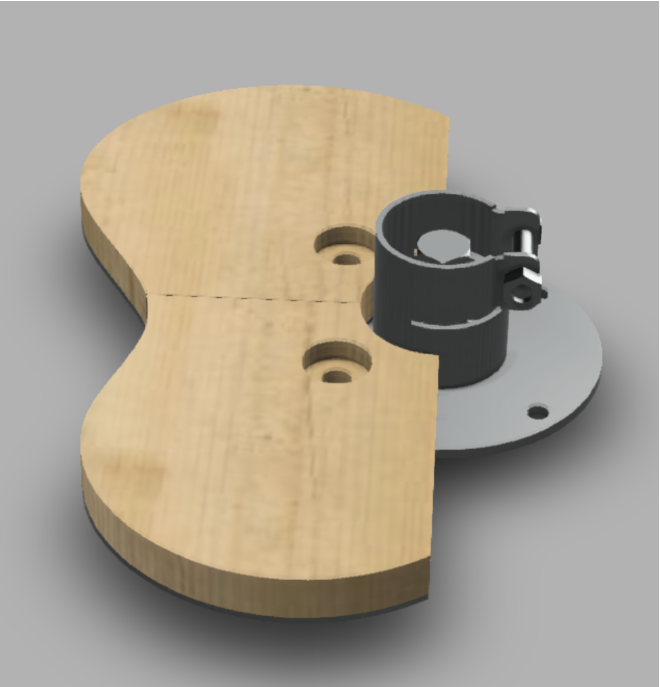

Initial position state of 53.18

Step 1 #


Place 2 pcs. of 99.91001 washer and fix with 2 pcs. 99.91035 screw.

Step 2 #

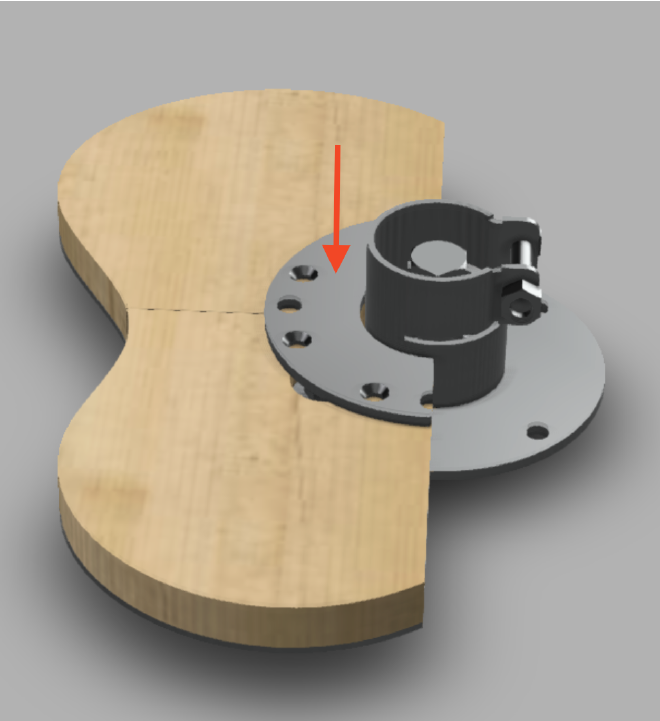

Position 1 pcs. of 10.15 floor plate with countersunk holes as depicted in the picture above.

Step 3 #


Fasten floor plate with 4 pcs. of 99.73 countersunk screw in designated holes for countersunk screws.
