Overview #

This manual provides instructions for the mounting safety panel onto a combination of safety brackets or safety plates.

Parts #

See order of use for 14.01 - perimeter safety panel

Assembly steps #

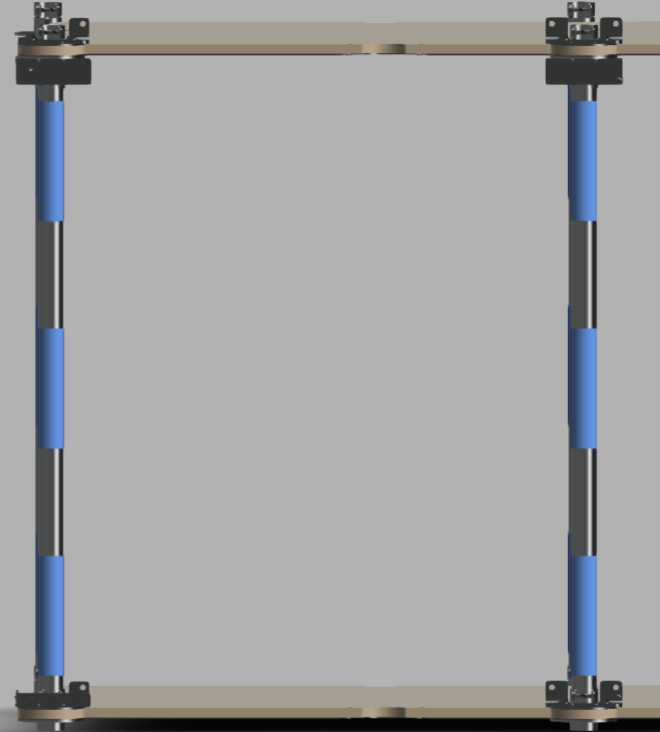

These are assembly instructions for mounting safety panels onto safety brackets or safety plates. Before mounting safety panels the following are prerequisites:

1. grid structural elements are assembled
2. safety brackets and/or safety plates are installed

Step 1 #

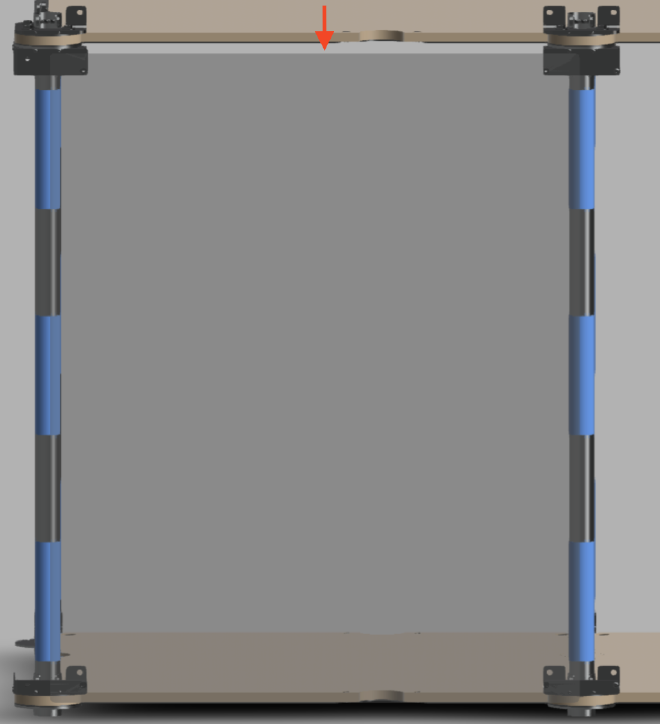

Position 14.12 safety panel so that holes in safety brackets or plates are aligned with holes in the safety panel as depicted in the image.

Step 2 #

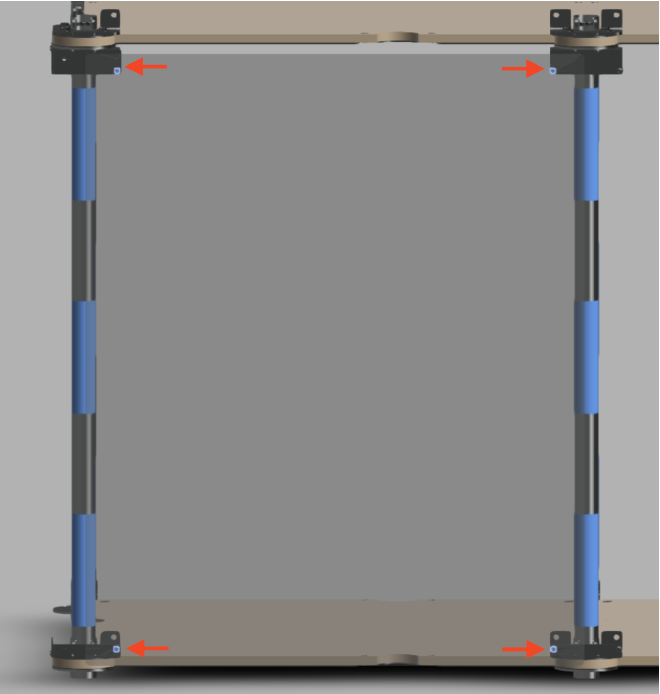

Fasten 14.12 safety panel with 4 pcs of 99.2217 screw and 4 pcs of 99.12 washer.

Mounting safety panel onto safety brackets or safety plates #

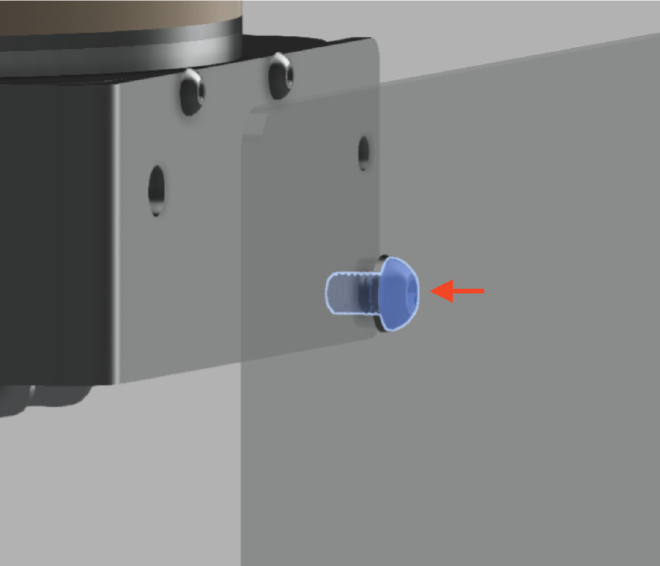

Please, note that mounting the safety panel onto the safety plate requires fastening the panel from the outside, while the safety bracket requires fastening from the inside as depicted in the pictures below.
