Overview #

This manual provides instructions for the installation of safety plates onto bracing brackets to mount safety panels.

Parts #

See order of use for 53.16 - perimeter straight section safety plates for safety barrier

Assembly steps #

These are assembly instructions for installing safety plates onto bracing brackets to mount safety panels. Before mounting safety plates the following are prerequisites:

grid structural elements are assembled
bracing brackets are installed onto designated connectors

Step 1 #

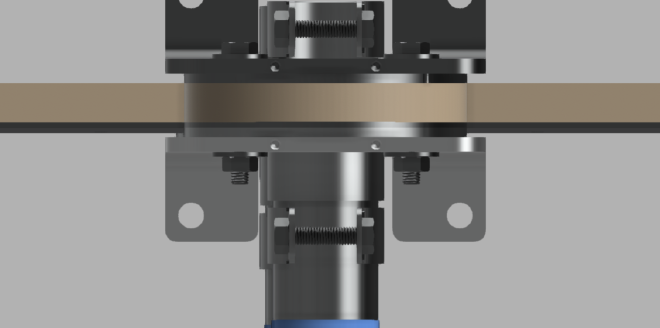

Position 15.35 safety plate to the edge of 15.40 bracing bracket at the bottom of the column as depicted in the image.

Safety plate positioned onto 15.40 bracing bracket, bottom of the column

Step 2 #

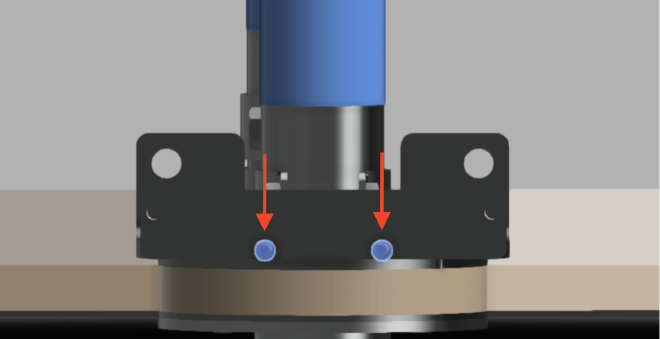

Fasten 15.35 safety plate with 2 pcs of 99.30 screw.

Safety plate mounted onto 15.40 bracing bracket, bottom of the column

Step 3 #

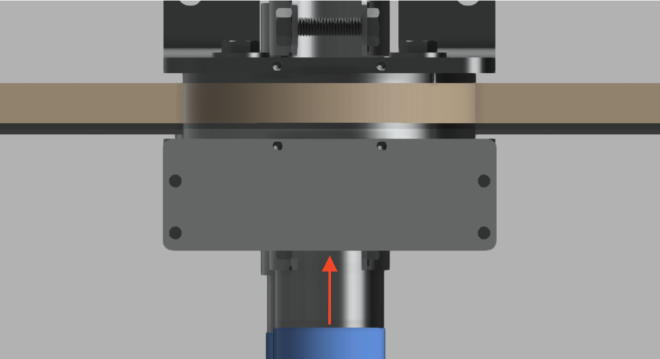

Position 15.54 safety plate to the edge of 15.40 bracing bracket at the top of the column as depicted in the image.

Safety plate positioned onto 15.40 bracing bracket, top of the column

Step 4 #

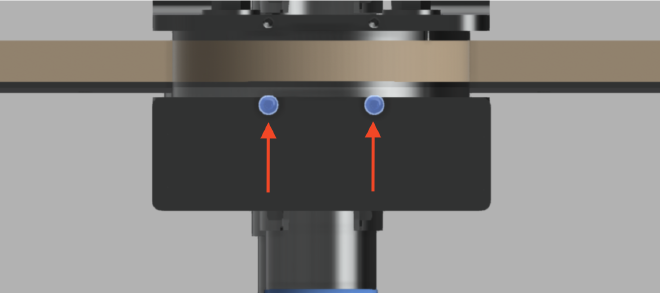

Fasten 15.54 safety plate with 2 pcs of 99.30 screw.
