53.1 - safety barrier for 2-level ramp

Table of Contents

Overview #

This manual provides instructions for installing safety barrier for a 2-level ramp using mounting clamps on the floor and ceiling levels.

Assembled 53.1, ceiling removed

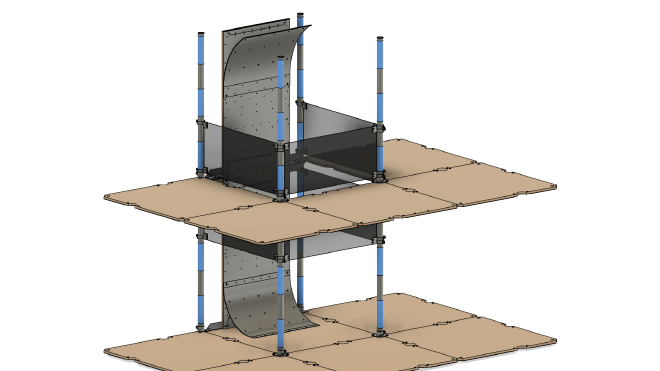

See 3D overview of 53.1

Parts #

See order of use for 53.1 - safety barrier for 2-level ramp

Assembly steps #

Prerequisites #

  1. 2 levels for 2-level ramp are installed
  2. 2-level ramp is installed
  3. bracings (if required) are installed
Connectors direction is below. It is similar on all floors.
Connectors directions for safety barrier installation, 2-level ramp

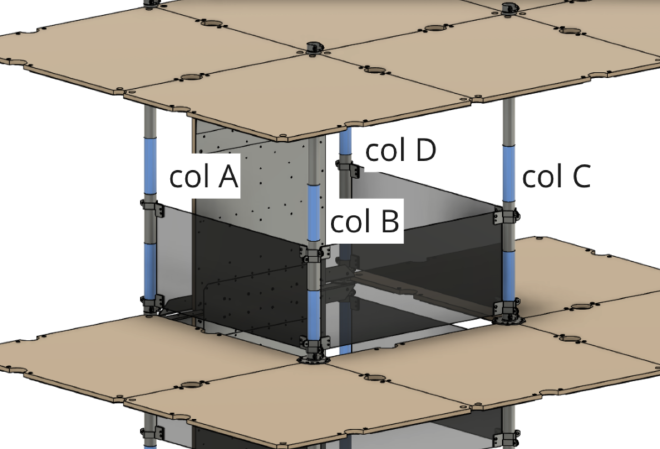

Column layout for safety barrier installation, 2-level ramp

Step 1 #

Mount 15.13 half clamp and 15.14 half clamp (assembly of 15.18 clamp) onto the bottom of Column A and fasten with 99.2217 screw. Refer to the clamp’s position in the images below for proper mounting.

Tighten just enough to ensure that clamp remains securely attached to the column. Ensure that the side of the clamp with threaded holes is oriented towards the center of Column B.

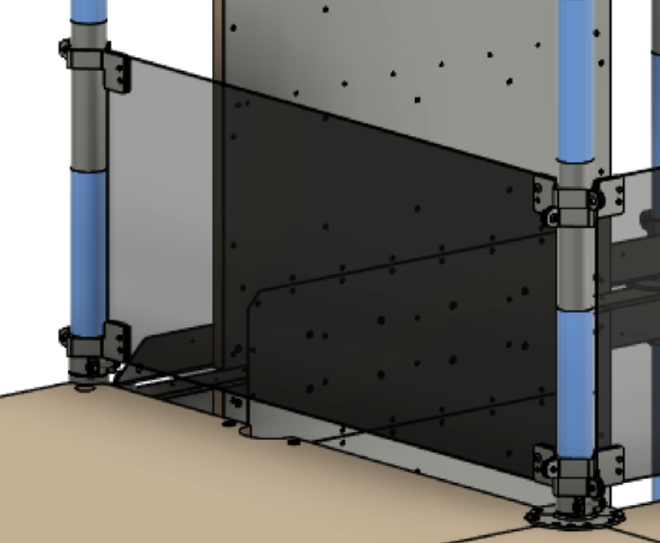

Clamp’s position at the bottom of the column (view 1)
Clamp’s position at the bottom of the column (view 2)

Step 2 #

Mount the clamp onto the middle of Column A. Repeat the instructions from step 1. Ensure that the clamp is positioned as depicted in the image below.

Clamp’s position at the middle of the column

Step 3 #

Proceed to mount clamps on the bottom and middle of Column B. Repeat the instructions from Step 1 and Step 2. Make sure that the side of the clamp with threaded holes is oriented towards the center of Column A.

Step 4 #

Mount additional clamps for safety panels onto Column B, so that an “angle” is formed. Now, the clamp with threaded holes must be oriented towards the center of Column C.

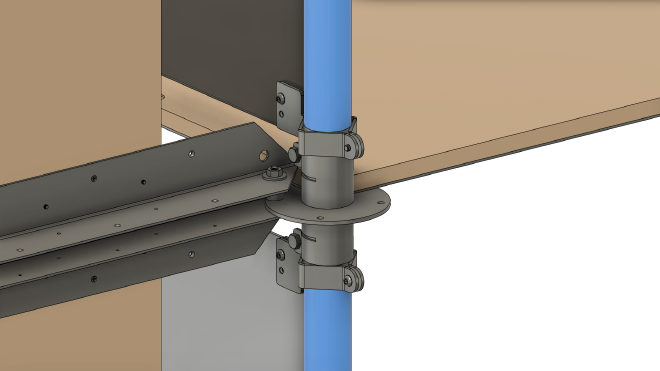

Clamp ‘angle’

Step 5 #

Repeat the instructions from Step 3 and Step 4 for Column C.

Step 6 #

Repeat the instructions from Step 1 and Step 2 for Column D.

To install safety panels for 2-level ramp on the ceiling, follow the same instructions as for installing safety panels and clamps on the floor.

Step 7 #

Ensure that clamps on opposite columns are positioned at the same level, so that the safety panel can be installed. If required, adjust the clamps on the column.

Step 8 #

Position the safety panel so that its holes align with the clamp’s threaded holes. Fasten with a 99.2217 screw.

Step 9 #

Repeat Step 7 and Step 8 to install the remaining safety panels.
